M.2 NGFF SSD naar 6+12 pin SSD adapter 2010 2011 MacBook Air A1369 A1370 1375 A1377 mc505 mc506

HDX-M.2.2AP2010Air

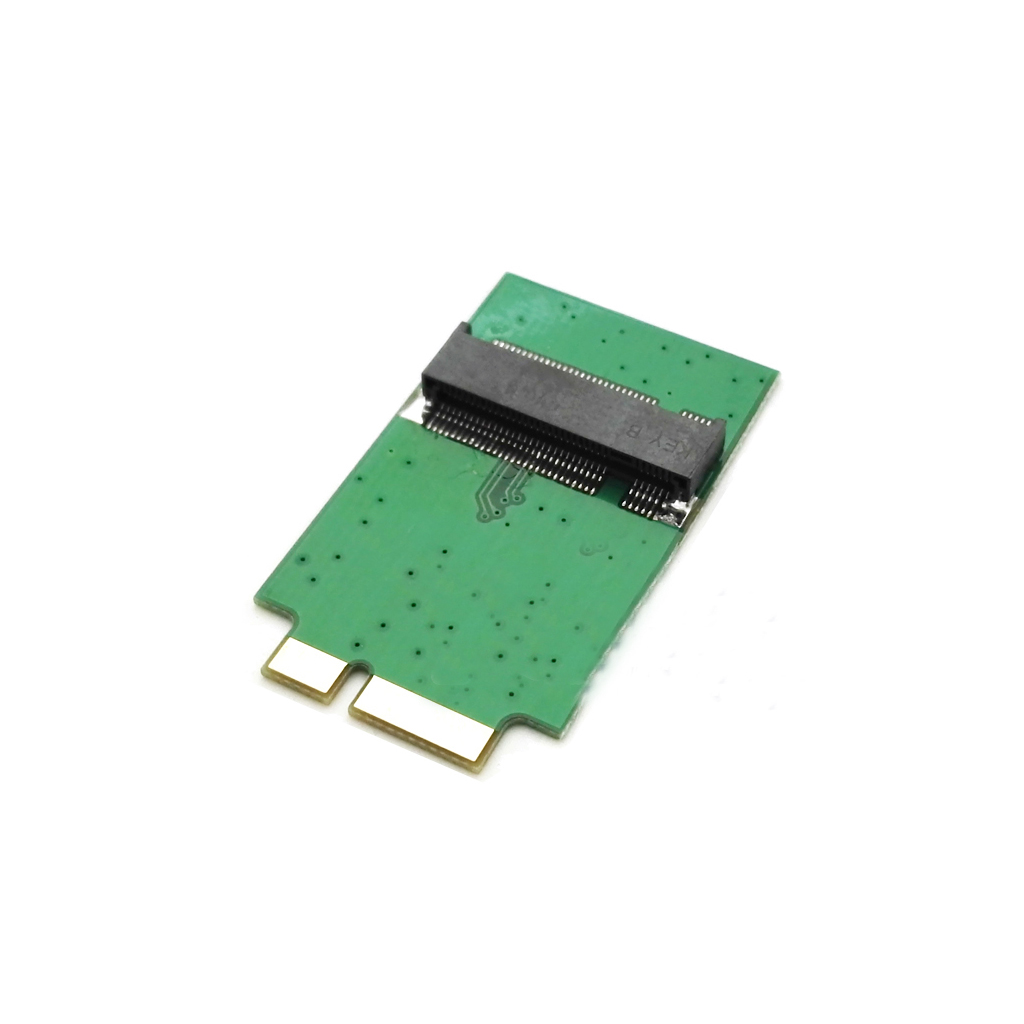

M.2 NGFF SSD naar 6 + 12 pin SSD adapter voor 2010 2011 MacBook Air A1369 A1370 1375 A1377 mc505 mc506 [079-M.2.2AP2010Air]
Warning: This product only support 2010/2011 version Apple MacBookair
A1369 A1370 1375 A1377 mc505 mc506
Please confirm that your computer is fit. The SSD is not sale met this product. interface Type: 6 pin + 12 pin PCI-E No SSD Include:Features: The adapter only supports 2010/2011 version Apple MacBook Air,the model Include:
A1369 A1370 1375 A1377 mc505 mc506 This adapter installed the NGFF SSD can replace original APPLE SSD, can install the MAC OS or Windows OS. No additional driver is needed.
About M.2 NGFF SSD interface standard: 1. Socket 2(B +M key):there are SATA (such as THNSNH128G8NT/ THNSNH128GDNT/MZNTD256HAGM models of SSD) and PCIe X2(such as PX-AG128M6E/PX-AG128M6E/SD6PP4M models of SSD) two different transfer mode. 2. Socket 3(M key):PCIe X4(such as MZHPU128HCGM and MZHPU512HCGL models of SSD) transfer mode. About MacBook Air SSD interface standard: 1. 2010 and 2011 version MacBook Air SSD is 6+12 pin, the dimension is 109 x24 mm（SATA -bus interface 2. 2012 version MacBook Air SSD is 8+18 pin, the dimension is 109x 24 mm（SATA -bus interface） 2012 version MacBook Pro SSD is 8+18 pin, the dimension is 89 x33 mm（SATA -bus interface） 3. 2013 and 2014 and 2015 version MacBook Air SSD Include:two sides golden-finger, one side is 16+12 pin, the other side is 11+14 pin, the dimension is 89 mm*24 mm. It's PCIe X4 bus interface. 4. 2013 and 2014 and 2015 version MacBook Pro SSD Include:two sides golden-finger, one side is 16+12 pin, the other side is 11+14 pin , the dimension is 89x33 mm. It's PCIe X4 bus interface.
About MacBook Air SSD interface standard: 1: 2010 and 2011 version MacBook Air SSD is 6+12 pin, only one side have contact,size is 109 mm*24 mm.It's SATA interface. 2: 2012 version MacBook Air SSD is 7+17 pin, size is 109 mm*24 mm.2012 version MacBook Pro SSD is 7+17 pin, size is 89 mm*33 mm.It's SATA interface. 3: 2013 and 2014 and 2015 version MacBook Air SSD is both side have contact,one sid is 16+12 pin,the other side is 11+14 pin,size is 89 mm*24 mm.It's PCIe X4 interface. 4: 2013 and 2014 and 2015 version MacBook Pro SSD is both side have contact,one sid is 16+12 pin,the other side is 11+14 pin,size is 89 mm*33 mm or 89 mm*24 mm.It's PCIe X4 interface.

Manufacturer Details
Condition	New product
SKU	HDX-M.2.2AP2010Air
Warranty (carry-in)	1 year
